Project Type: Windows Server | pfSense | Firewall Management
Skill Level: Intermediate
Lab Platform: Hyper-V + VMware + pfSense + Windows Server 2022

---

Why I Built This

Day 6 of my 10-day hands-on IT lab series focuses on securing updates and firewall control for the Domain Controller (DC) using pfSense. The goal is to simulate a locked-down DC that can only access updates and internal services, preventing it from browsing the internet unless explicitly allowed.

In this day, I configured pfSense firewall rules to block internet access for the DC, allowed access temporarily for critical updates, and then re-secured the DC to simulate a real-world scenario of maintaining a secure environment while keeping systems up to date.

---

Lab Setup Overview

Component	Details
Hypervisor	Hyper-V (Main Hypervisor)
VMware Platform	VMware Workstation Pro
Domain Name	wired.com
Subnet	192.168.1.0/24
DC IP Address	192.168.1.10 (Static)
Client DNS	192.168.1.10 (Domain Controller)
pfSense	Virtual Firewall/Router

---

Step-by-Step Breakdown

Part 1: Simulate a “Locked-Down” Domain Controller

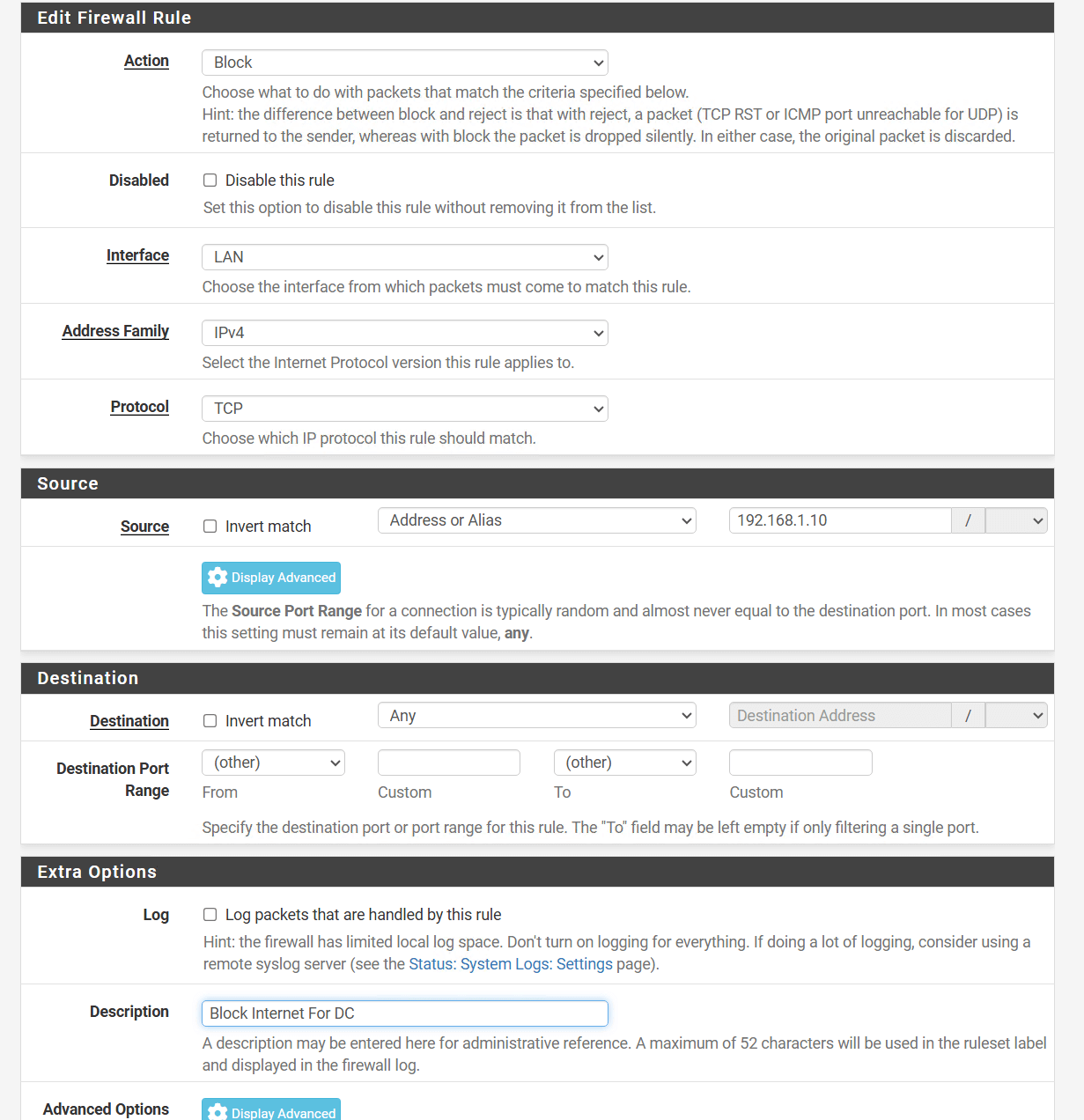

1. Create a Deny Rule in pfSense to block internet access for the Domain Controller:
   • Go to Firewall > Rules > LAN on pfSense.
   • Add a rule with the following settings:
     • Action: Block
     • Interface: LAN
     • Source: NYC-DC1 IP (e.g., 192.168.1.10)
     • Destination: any
     • Description: “Block Internet for DC”
   • Click Save, then Apply Changes.
   Result: Your DC is now isolated from the internet, simulating an air-gapped environment.

Part 2: Temporarily Allow Internet to Update the DC

1. Disable the Block Rule in pfSense:
   • Go to Firewall > Rules > LAN and disable the “Block Internet for DC” rule.
   • Click Apply Changes.

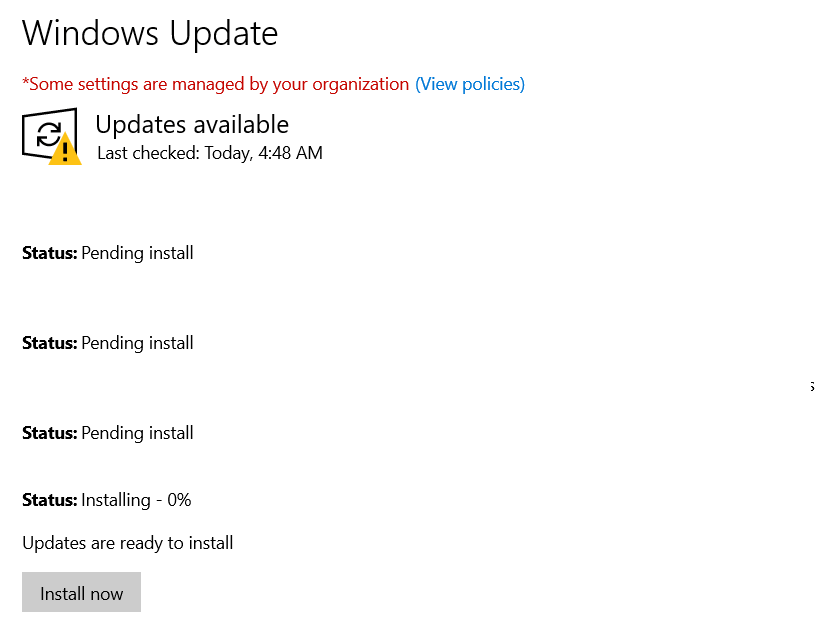

2. Update the Server:
   • On NYC-DC1, open Settings > Windows Update.
   • Click Check for updates and install any critical updates.
   • Reboot if required.
   Result: The DC is updated with the latest patches and features.

Part 3: Re-Secure the Server

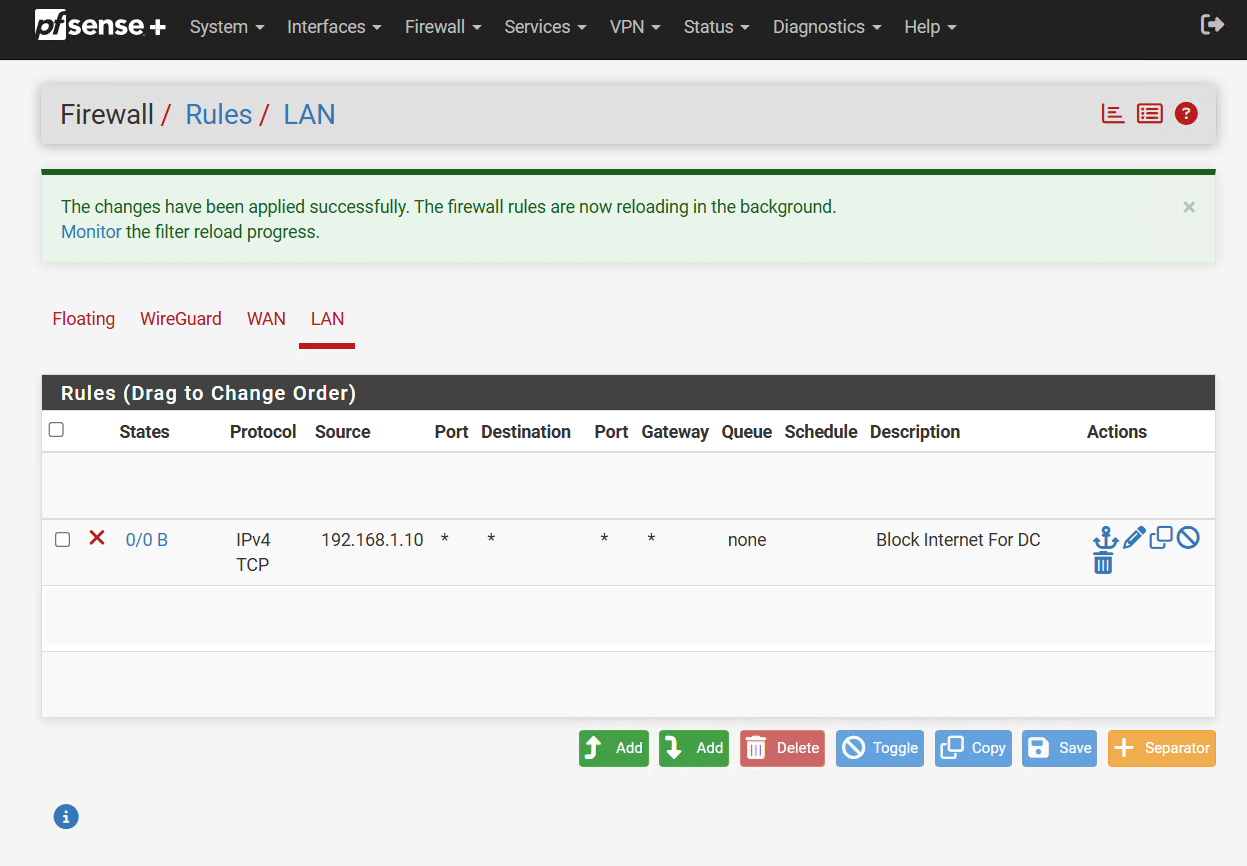

1. Re-enable the Block Rule in pfSense to restore the DC’s lockdown mode:
   • Go back to pfSense, click the icon to enable the block rule again.
   • Click Apply Changes.
   Result: The DC is now back in a secure, no-internet mode.

Part 4: Write a Simple SOP (Standard Operating Procedure)

1. Document the process in a SOP for securely updating a locked-down DC.
   SOP Title: Updating a Locked-Down Domain Controller
   Objective: Securely update the DC without exposing it long-term to the internet.

Step	Action
Step 1: Enable outbound access	Disable the “Block Internet for DC” rule in pfSense.
Step 2: Install critical updates	Use Windows Update to install updates.
Step 3: Add Windows features (optional)	Enable additional features (RSAT tools, .NET Framework, etc.).
Step 4: Lock the DC back down	Re-enable the block rule in pfSense to restore security.

---

Key Problems Solved

• DC Internet Access Control: Successfully simulated a locked-down DC using pfSense, allowing internet access only when necessary for updates.
• Secure Update Management: Ensured that the DC could receive critical updates without compromising security.
• Documenting Procedures: Created a simple, clear SOP for securely updating a Domain Controller in a high-security environment.

---

Troubleshooting Tips

• Update Fails After Rule is Disabled?
  • Double-check the pfSense rule to ensure the DC has internet access during the update process.
  • Verify the DC’s Windows Update settings to ensure no firewall issues are blocking the update.
• Can’t Re-enable the Block Rule?
  • Ensure that pfSense applies changes properly after clicking Apply Changes.
  • Verify there are no conflicting rules or exceptions in pfSense that might override the block.

---

What I Learned

• Network Security: How to simulate an air-gapped environment and control internet access for critical systems.
• Firewall Configuration: Gained hands-on experience with pfSense firewall rules to enforce security on internal servers.
• Update Management: Learned the importance of updating servers while maintaining security through strict network access controls.

---

What’s Next?

In Day 7, I will focus on:

• Imaging and rejoining a workstation to the domain.
• Sysprepping a Windows 10 machine to prepare a clean image.
• Cloning and redeploying the image, then rejoining it to the domain.
• Simulating profile migration to restore user files after a workstation reset.

Stay tuned as I dive into the process of creating and restoring system images for efficient deployment and reconfiguration!

---
